#include <DistribGF.h>

Inheritance diagram for alize::DistribGF:

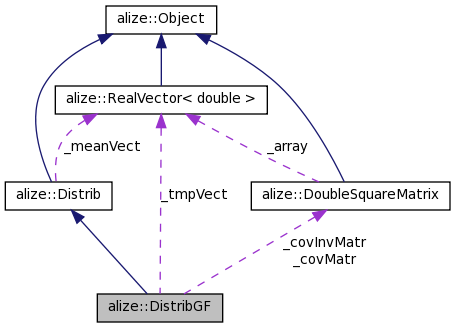

Collaboration diagram for alize::DistribGF:

Public Member Functions
	DistribGF (const DistribGF &d)
	DistribGF (const unsigned long vectSize)
	DistribGF (const Config &config)
virtual const Distrib &	operator= (const Distrib &d)
const DistribGF &	operator= (const DistribGF &d)
virtual bool	operator== (const Distrib &d) const
virtual	~DistribGF ()
virtual void	reset ()
virtual lk_t	computeLK (const Feature &) const
virtual lk_t	computeLK (const Feature &, unsigned long idx) const
void	setCov (const real_t value, const unsigned long col, const unsigned long row)
virtual void	computeAll ()
real_t	getCov (const unsigned long col, const unsigned long row) const
real_t	getCovInv (const unsigned long col, const unsigned long row) const
DoubleSquareMatrix &	getCovMatrix ()
const DoubleSquareMatrix &	getCovMatrix () const
DoubleSquareMatrix &	getCovInvMatrix ()
const DoubleSquareMatrix &	getCovInvMatrix () const
virtual String	getClassName () const
virtual String	toString () const
void	setCovInv (const K &, real_t value, const unsigned long col, const unsigned long row)
DistribGF &	duplicate (const K &) const
Static Public Member Functions
static DistribGF &	create (const K &, const unsigned long vectSize)
static DistribGF &	create (const K &, const Config &config)
Private Member Functions
virtual Distrib &	clone () const
Private Attributes
DoubleSquareMatrix	_covMatr
DoubleSquareMatrix	_covInvMatr
real_t	_cst
DoubleVector	_tmpVect
Friends
class	TestDistribGF
class	TestMixtureGF
class	TestMixtureGFStat

Detailed Description

Class for a distribution GF (gaussian with full matrix)

Just after creation, all the values are randomly initialized.

To build a valid distribution, you have to set all the covariance and mean values and call computeAll() to compute inverse covariance values, the constante and the determinant.
A temporary array is used to store covariance values. This array is destroyed after calling computeAll(). Before calling computeAll(), the distribution is not valid for some methods.

Author:: Frederic Wils frederic.wils@lia.univ-avignon.fr

Date:: 2003

Definition at line 91 of file DistribGF.h.

Constructor & Destructor Documentation

DistribGF::DistribGF ( const DistribGF & d )

Copy constructor

Parameters:

d	the distribution GF to copy.

Exceptions:

Exception can be thrown if the dimension of d does not match the dimension of this distribution

Definition at line 123 of file DistribGF.cpp.

References alize::Distrib::_det, and alize::Distrib::_meanVect.

Referenced by clone(), and create().

DistribGF::DistribGF ( const unsigned long vectSize ) [explicit]

Creates a new DistribGF object. All the values are randomly initialized.

Parameters:

vectSize dimension of the distribution

Definition at line 85 of file DistribGF.cpp.

DistribGF::DistribGF ( const Config & config ) [explicit]

Creates a new DistribGF object. All the values are randomly initialized.

Parameters:

config parameters used to build the distribution

Definition at line 89 of file DistribGF.cpp.

DistribGF::~DistribGF ( ) [virtual]

Definition at line 293 of file DistribGF.cpp.

Member Function Documentation

Distrib & DistribGF::clone ( ) const [private, virtual]

Implements alize::Distrib.

Definition at line 168 of file DistribGF.cpp.

References alize::Object::assertMemoryIsAllocated(), and DistribGF().

Referenced by duplicate().

void DistribGF::computeAll ( ) [virtual]

Computes internal data (determinant of the matrix, inverse covariance matrix and a constante used for likelihood computation)

Implements alize::Distrib.

Definition at line 218 of file DistribGF.cpp.

References _covInvMatr, _covMatr, _cst, alize::Distrib::_det, alize::Distrib::_vectSize, alize::Object::EPS_LK, alize::DoubleSquareMatrix::invert(), alize::Object::PI2, and alize::DoubleSquareMatrix::setSize().

lk_t DistribGF::computeLK ( const Feature & frame ) const [virtual]

Computes the likelihood between this distribution and a Feature object.

Returns:: the likelihood

Exceptions:

Exception if the feature vectSize does not match the distribution vectSize

Implements alize::Distrib.

Definition at line 177 of file DistribGF.cpp.

References _covInvMatr, _cst, alize::Distrib::_meanVect, _tmpVect, alize::Distrib::_vectSize, alize::Object::EPS_LK, alize::DoubleSquareMatrix::getArray(), alize::RealVector< T >::getArray(), alize::Feature::getDataVector(), alize::Feature::getVectSize(), and alize::String::valueOf().

lk_t DistribGF::computeLK	(	const Feature &	frame,
		unsigned long	idx
	)		const `[virtual]`

Implements alize::Distrib.

Definition at line 209 of file DistribGF.cpp.

References _covInvMatr, _cst, alize::Distrib::_meanVect, and alize::Object::EPS_LK.

DistribGF & DistribGF::create	(	const K &	,
		const unsigned long	vectSize
	)		`[static]`

Creates a new DistribGF object. Call the constructor and returns the object. internal usage ***

Parameters:

vectSize dimension of the distribution

Returns:: the new DistribGF object

Definition at line 113 of file DistribGF.cpp.

References alize::Object::assertMemoryIsAllocated(), and DistribGF().

Referenced by create(), alize::Distrib::create(), and alize::MixtureGF::MixtureGF().

DistribGF & DistribGF::create	(	const K &	,
		const Config &	config
	)		`[static]`

Creates a new DistribGF object. Call the constructor and returns the object. internal usage ***

Parameters:

config parameters used to build the distribution

Returns:: the new DistribGF object

Definition at line 120 of file DistribGF.cpp.

References create(), alize::Config::getParam_vectSize(), and alize::K::k.

DistribGF & DistribGF::duplicate ( const K & ) const

Duplicates this DistribGF Object. See copy contructor internal usage ***

Returns:: a reference to the copy

Reimplemented from alize::Distrib.

Definition at line 165 of file DistribGF.cpp.

References clone().

String DistribGF::getClassName ( ) const [virtual]

Returns the name of the class

Returns:: the name of the class of the object as a String

Implements alize::Distrib.

Definition at line 265 of file DistribGF.cpp.

Referenced by alize::MixtureGF::toString().

real_t DistribGF::getCov	(	const unsigned long	col,
		const unsigned long	row
	)		const

Gets a value in the covariance matrix. WARNING : contrary to class Matrix, colum index is FIRST argument and row index is SECOND argument
This will probably change in next release of Alize

Parameters:

col	column index
row	row index

Returns:: the value of the covariance

Exceptions:

IndexOutOfBoundsException

Definition at line 247 of file DistribGF.cpp.

References _covMatr, alize::Distrib::_vectSize, and alize::DoubleSquareMatrix::setSize().

real_t DistribGF::getCovInv	(	const unsigned long	col,
		const unsigned long	row
	)		const

Gets a value in the inverse covariance matrix WARNING : contrary to class Matrix, colum index is FIRST argument and row index is SECOND argument
This will probably change in next release of Alize

Parameters:

col	column index
row	row index

Returns:: the value of the inverse covariance

Exceptions:

IndexOutOfBoundsException

Definition at line 253 of file DistribGF.cpp.

References _covInvMatr.

DoubleSquareMatrix & DistribGF::getCovInvMatrix ( )

Returns a reference to the inverse covariance matrix

Returns:: a reference to the inverse covariance matrix

Definition at line 257 of file DistribGF.cpp.

References _covInvMatr.

const DoubleSquareMatrix & DistribGF::getCovInvMatrix ( ) const

Definition at line 259 of file DistribGF.cpp.

References _covInvMatr.

DoubleSquareMatrix & DistribGF::getCovMatrix ( )

Returns a reference to the covariance matrix.

Returns:: a reference to the covariance matrix

Definition at line 261 of file DistribGF.cpp.

References _covMatr.

const DoubleSquareMatrix & DistribGF::getCovMatrix ( ) const

Definition at line 263 of file DistribGF.cpp.

References _covMatr.

const Distrib & DistribGF::operator= ( const Distrib & d ) [virtual]

Copy data members of a distribution in this distribution.

Parameters:

d	the distribution source

Returns:: this distribution as a generic distribution

Exceptions:

Exception if the dimension of d does not match the dimension of this distribution or if d is not a DistribGF object.

Implements alize::Distrib.

Definition at line 131 of file DistribGF.cpp.

References NULL.

const DistribGF & DistribGF::operator= ( const DistribGF & d )

Copy data members of a distribution GF in this distribution

Parameters:

d	the distribution GF source

Returns:: this distribution

Exceptions:

Exception can be thrown if the dimension of d does not match the dimension of this distribution

Definition at line 139 of file DistribGF.cpp.

References _covInvMatr, _covMatr, _cst, alize::Distrib::_det, alize::Distrib::_meanVect, alize::Distrib::_vectSize, and alize::String::valueOf().

bool DistribGF::operator== ( const Distrib & d ) const [virtual]

Compares the distribution d to this one.

Parameters:

d	the generic distribution to compare to this one.

Returns:: false if :
> d is not a DistribGF object or
> dimension of d does not match dimension of this distribution or
> one of the inverse covariance values in d does not match the corresponding value in this distribution or
> one of the mean values in d does not match the corresponding value in this distribution
Otherwise return true.

Implements alize::Distrib.

Definition at line 153 of file DistribGF.cpp.

References _covInvMatr, _covMatr, alize::Distrib::_meanVect, NULL, and alize::DoubleSquareMatrix::size().

void DistribGF::reset ( ) [virtual]

Resets the distribution (as creation)

Implements alize::Distrib.

Definition at line 93 of file DistribGF.cpp.

void DistribGF::setCov	(	const real_t	value,
		const unsigned long	col,
		const unsigned long	row
	)

Sets a value in the covariance matrix. WARNING : contrary to class Matrix, colum index is FIRST argument and row index is SECOND argument
This will probably change in next release of Alize A zero value is automatically replaced by a positive-and-non-zero value near to zero.

Parameters:

value	value to set
col	column index
row	row index

Exceptions:

IndexOutOfBoundsException

Definition at line 235 of file DistribGF.cpp.

References _covMatr, alize::Distrib::_vectSize, alize::Object::MIN_COV, and alize::DoubleSquareMatrix::setSize().

void DistribGF::setCovInv	(	const K &	,
		real_t	value,
		const unsigned long	col,
		const unsigned long	row
	)

Sets a value in the inverse covariance matrix. internal usage ***

Parameters:

value	value to set
col	column index
row	row index

Exceptions:

IndexOutOfBoundsException

Definition at line 243 of file DistribGF.cpp.

References _covInvMatr.

String DistribGF::toString ( ) const [virtual]

This method is frequently overridden in the derived classes. If it is not, it returns the name of the class of the object and the address of the object
